Thermal Insulation Heat Preservation Aluminium Casement Windows 2mm Profile

Foshan Weinas Energy Saving Curtain Wall Doors and Windows Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Thermal Insulation Heat Preservation Aluminium Casement Windows 2mm Profile

Brand Name : WEINAS

Model Number : WEIPIN 120

Certification : AS2047

Place of Origin : Foshan, China

MOQ : 2 Square Meters

Price : USD100-130 Per Square Meters

Payment Terms : T/T

Supply Ability : 3000 Square Meters Per Month

Delivery Time : 25-35 Days

Packaging Details : Foam, Poly Bag, Wooden Case

Name : Heat Preservation Thermal Insulation Windows

Product Name : Thermal Insulation Heat Preservation Aluminium Casement Windows

Brand : WEINAS

Model : WEIPIN 120

Material : Aluminum, Double Glass

Profile Thickness : 2mm

Glass : 5mm+25A+5mm Double Glass

Glass Leaf Visible Width : 72mm

Screen Leaf Visible Width : 60mm

Wall Occupied : 120mm

Color : Matt Black, Glossy Grey, Matt Grey, Matt Brown

Open Mode : Casement

Advantages : Heat Preservation, Anti-mosquito

Contact Now

Thermal Insulation Heat Preservation Aluminium Casement Windows

Product Description:

Thermal insulation and heat preservation in aluminum casement windows are achieved through a combination of advanced frame design and high-performance glazing. While traditional aluminum is a highly conductive material, modern innovations have made it a viable and energy-efficient option for windows.Here is a detailed introduction:

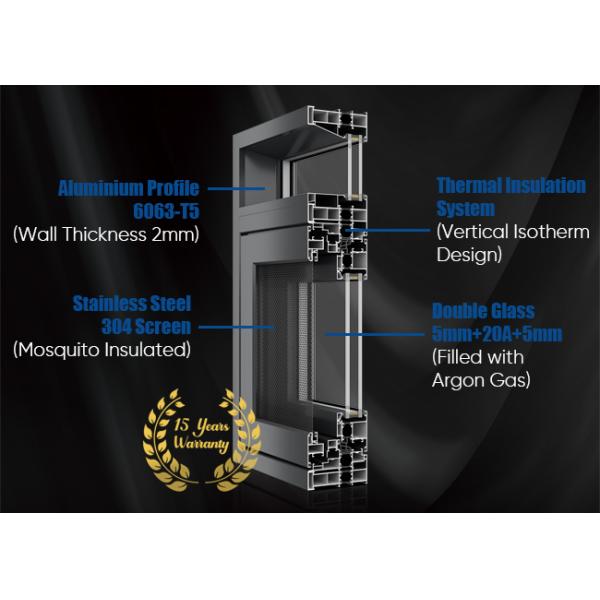

  • The most significant factor in creating an insulated aluminum window is the thermal break. This is an insulating, non-metallic strip (typically made of materials like polyamide, polyurethane, or vinyl) that is placed between the interior and exterior sections of the aluminum frame.By inserting a heat insulation strip into the aluminium alloy profile, the aluminium profile is divided into two parts, inner and outer, which effectively prevents heat conduction. This technology greatly reduces the thermal conductivity of the aluminium alloy window, making the temperature of the inner surface of the window frame close to the indoor temperature and reducing the possibility of indoor moisture condensing on the profile surface due to supersaturation.
  • Thermal insulation and heat preservation in aluminum casement windows are achieved through a combination of advanced frame design and high-performance glazing. While traditional aluminum is a highly conductive material, modern innovations have made it a viable and energy-efficient option for windows.

Sepcifications

Product Name: Thermal Insulation Heat Preservation Aluminium Casement Windows
Brand: WEINAS
Model: WEIPIN 120
Material: Aluminum, Double Glass
Profile Thickness: 2mm
Glass: 5mm+25A+5mm Double Glass

Glass Leaf Visible Width:

72mm

Screen Leaf Visible Width:

60mm
Wall Occupied: 120mm
Color: Matt Black, Glossy Grey, Matt Grey, Matt Brown
Open Mode: Casement
Advantages: Heat Preservation, Anti-mosquito

Features:

  1. Outstanding Thermal Insulation Performance: The thermal conductivity of the heat insulation aluminium alloy profile is low. In winter, it can effectively prevent indoor heat from escaping, keeping the indoor warm; in summer, it can block outdoor heat from entering, making the indoor cool, which can significantly save heating and cooling costs.
  2. Good Sound Insulation Effect: The use of hollow glass structures with different thicknesses and the cavity structure of heat insulation broken bridge aluminium profiles can effectively reduce the resonance effect of sound waves and block the transmission of sound, creating a quiet indoor environment.
  3. Excellent Sealing Performance: The opening part of the window is locked by a two - point lock or a heaven - earth lock, with excellent airtightness and water tightness. It can prevent the intrusion of wind, rain, dust, etc., and ensure indoor dryness and cleanliness.
  4. High Strength and Safety: The aluminium alloy profile has high strength and impact resistance, and can effectively resist deformation when subjected to external force impact. At the same time, as a metal material, aluminium alloy does not burn and has good fire resistance, which can effectively prevent the spread of fire in case of a fire.
  5. Beautiful Appearance and Variety of Choices: It can be selected in different colors according to customer needs to meet the preferences for color effects and personalized design requirements. The streamlined design of the aluminium alloy window is luxurious and elegant, adding color to the building.

Thermal Insulation Heat Preservation Aluminium Casement Windows 2mm Profile

Thermal Insulation Heat Preservation Aluminium Casement Windows 2mm Profile

Thermal Insulation Heat Preservation Aluminium Casement Windows 2mm Profile

Thermal Insulation Heat Preservation Aluminium Casement Windows 2mm Profile
