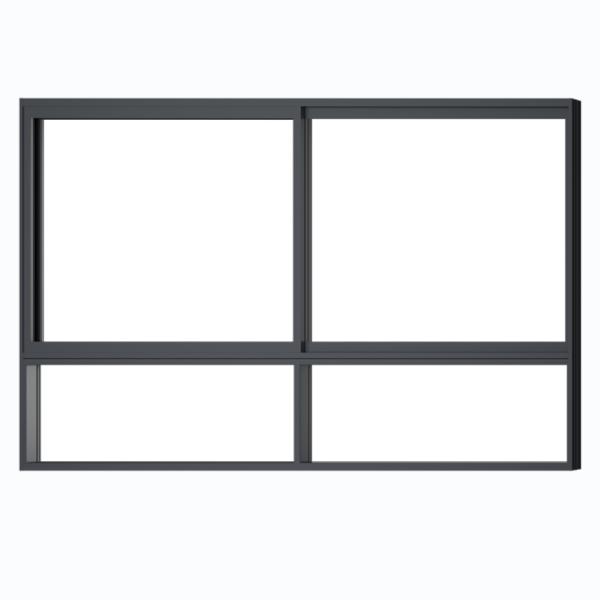

Large Lighting Area Windproof Aluminium Thermal Insulation Windows Heavy Duty

  • 1
  • 2

Brand Name : WEINAS

Model Number : WEIGAO SW

Certification : AS2047

Place of Origin : Foshan, Chian

MOQ : 4 Square Meters

Price : USD65-105 Per Square Meters

Payment Terms : T/T

Supply Ability : 2000 Square Meters Per Month

Delivery Time : 25-35 Days

Packaging Details : Foam, Poly Bag, Wooden Case

Name : Large Lighting Area Windproof Heavy Duty Aluminium Thermal Insulation Window

Material : Aluminium 6063-T5, Insulated Glass

Profile Thickness : Panel: 3mm, Rail: 2.5mm

Glass : 5mm+15A+5mm Tempered Insulated Glass

Panel : 68mm(Frame Visual Width), 35mm(Panel Thickness)

Wall Occupied : Double Tracks: 91mm, Triple Tracks: 135mm

Screen Material : Stainless Steel 304

Color : Grey, Black, Brown, White, Wood Grain

Open Type : Sliding

Advantages : Heat Break, Wind Resistant

Contact Now

Large Lighting Area Windproof Heavy Duty Aluminium Thermal Insulation Window

Product Description:

When searching for "Large Lighting Area Windproof Heavy Duty Aluminium Thermal Insulation Window" the key concept is a "thermally broken" aluminum window. Aluminum is a strong and durable material for window frames, but it is a poor insulator because it conducts heat very well. To overcome this, manufacturers have developed a technology called a thermal break.

What is a Thermal Break? A thermal break is an insulating material, typically a low-conductivity plastic like polyurethane or polyamide, that is placed between the inner and outer sections of the aluminum window frame. This creates a barrier that significantly reduces the transfer of heat or cold through the frame.

Key Features and Benefits:

  1. Superior Thermal Performance: By preventing heat transfer through the frame, these windows significantly improve a building's energy efficiency. They keep the inside of a building cooler in the summer and warmer in the winter, reducing the need for heating and air conditioning and lowering utility bills.
  2. Durability: Aluminium is a robust material that is resistant to corrosion, warping, and cracking, making it a long-lasting and low-maintenance choice.
  3. Condensation Reduction: The thermal break prevents the interior frame from becoming cold in the winter, which helps to minimize the formation of condensation on the inside of the window.
  4. Sound Insulation: The thermal break, combined with multi-pane glazing, can also help to reduce noise transmission, creating a quieter indoor environment.
  5. Aesthetics: Aluminium allows for a slim, sleek frame design with larger glass areas, which can provide a modern, minimalist look and maximize natural light.

Specifications

Product Name:

Large Lighting Area Windproof Heavy Duty Aluminium Thermal Insulation Window
Brand: WEINAS
Model: WEIGAO SW
Material: Aluminium 6063-T5, Insulated Glass
Profile Thickness: Panel: 3mm, Rail: 2.5mm
Glass: 5mm+15A+5mm Tempered Insulated Glass
Panel: 68mm(Frame Visual Width), 35mm(Panel Thickness)
Wall Occupied: Double Tracks: 91mm, Triple Tracks: 135mm
Color: Grey, Black, Brown, White, Wood Grain
Open Mode: Sliding
Advantages: Heat Break, Wind Resistant

Applications:

  1. Commercial and High-Rise Buildings
  2. Large Residential Projects
  3. Industrial and Heavy Machinery Environments
  4. Extreme Climates
  5. Building Renovations and Retrofits
